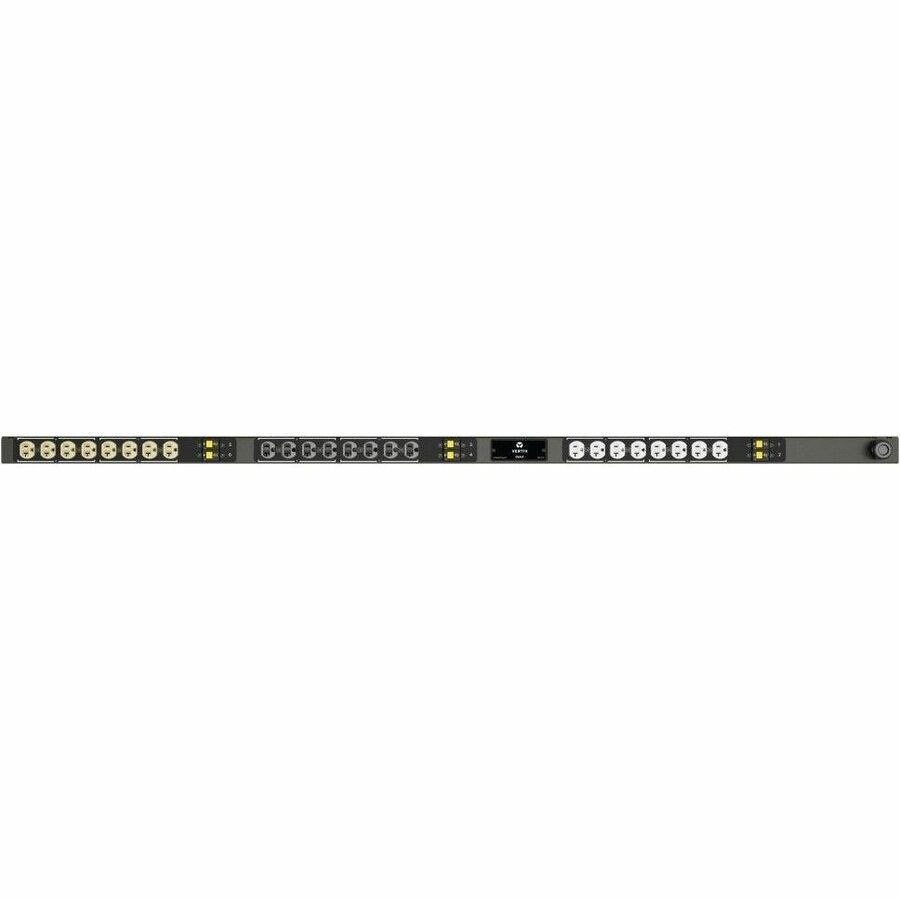

Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.
Benefits
- With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Technical Information
- PDU Type
- Basic
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L21-30P
- Plug/Connector Detail
- 1 x NEMA L21-30P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 24 x NEMA 5-20R
- Protection Type
- Overcurrent Protection
- Single Pole
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 120 V AC
- 200 V AC - 240 V AC
- Output Voltage
- 120 V AC
- Power Rating (Watt)
- 8600 W
- Input Current
- 30 A
- Input Frequency
- 60 Hz
- Physical Characteristics
- Color Family
- Orange
- Product Color
- Orange
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Cabinet-mountable
- Form Factor
- Vertical
- Cord Length
- 10 ft
- Width
- 2"
- Depth
- 2.3"
- Length
- 66.3"
- Environmental Conditions
- Maximum Operating Temperature
- 140°F (60°C)
- Miscellaneous
- Package Contents
- rPDU MN01X4B1-24D203-3TL21A0A10-S 24-Outlets PDU
- 7938 Vertical Mounting Bracket Kit
- Application/Usage
- IT Equipment
- Server Rack/Cabinet
- Certifications & Standards
- UL
- c-UL Listed 62368-1
- FCC Part 15 Class A
- Country of Origin
- United States
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
