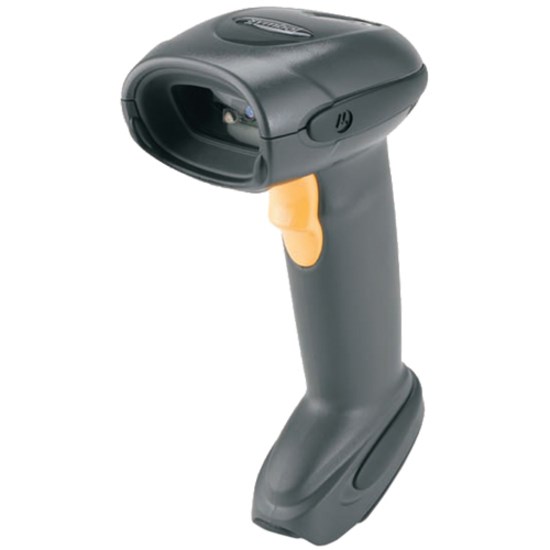

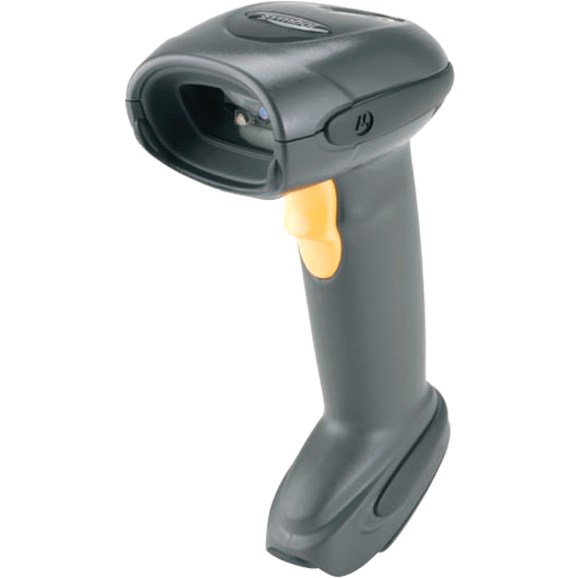

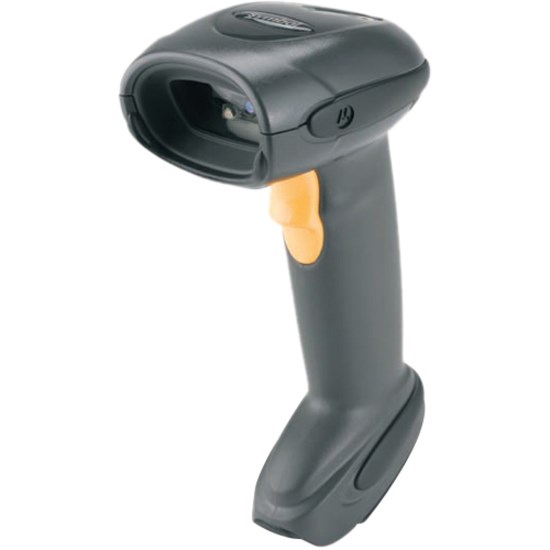

The DS6878-SR cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common bar codes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture; optical character recognition (OCR) to capture text in documents; and MICR to capture numeric information on the bottom of checks.
- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Line
- Symbol
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1-D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 plus Supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5)
- GS1 Databar (Omnidirectional,Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
PDF417 (And Variants):
- PDF417
- MicroPDF417
- Composite Codes (CC-A, CC-B, CC-C)CC-B, CC-C)
Postal:
- U.S. Postnet And Planet
- U.K.
- Japan
- Australian
- Netherlands KIX code
- Royal Mail 4 State Customer
- UPU ICS 4 State Postal
- USPS 4CB
2-D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse and Micro)
- Light Source
- LED
- Image Sensor Type
- Imager
- Depth of Field
- 0.5" - 6.3"@5mil - Code 39
- 1.3" - 5.4"@6mil - Code 128
- 8"@10mil - Code 128
- 0.6" - 7.2"@7.8mil - 60% UPC
- 0.7" - 11"@13mil - 100% UPC
- 1.9" - 3.5"@5mil - PDF
- 1" - 5.9"@6.6mil - PDF
- 8"@10mil - PDF
- 1.1" - 7.2"@10mil - Data Matrix
- Scan Pattern
- Omni-directional
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Physical Characteristics
- Form Factor
- Handheld
- Product Color
- Black
- Height
- 7.3"
- Width
- 2.7"
- Depth
- 3.9"
- Weight (Approximate)
- 8.40 oz
- Miscellaneous
- Additional Information
USB Cable separate
