- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Series
- ZD600
- Product Type
- Direct Thermal Printer
PREMIUM FEATURES, MAXIMUM PERFORMANCE AND UNMATCHED SECURITY FOR YEARS OF QUALITY PRINTING IN HEALTHCARE ENVIRONMENTS

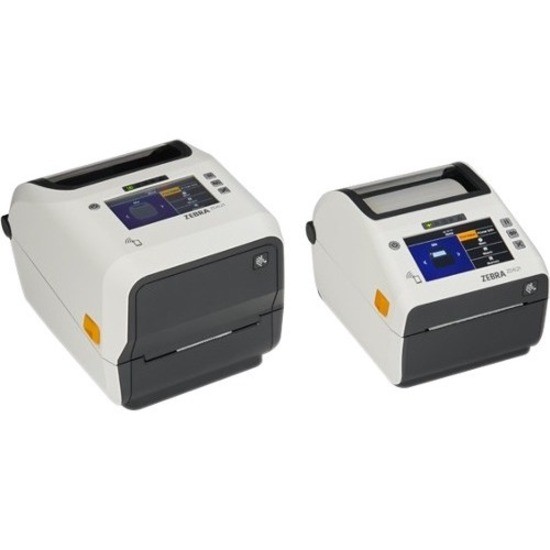

You need a premium, quality healthcare printer that's built to perform flawlessly-day in and day out. Rely on Zebra's ZD621 healthcare desktop printers, built specifically for healthcare, and advancing the proven and popular ZD620 printers. Don't compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Healthcare-specific engineering with disinfectant-ready plastics, UV-resistant and medical-grade power supply. Unmatched security that's constantly evolving to shield you from cyberattacks and safeguard your sensitive data, including patient information. A new standard 4.3-inch, full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options. And, increased remote- management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security to keep you moving forward.
ELEVATING A PROVEN WINNER
Extending the ZD-Series Legacy
Zebra's ZD620 Series printers are known for quality, premium performance. As you select your next printer, you can be confident the next-generation ZD621 includes everything you loved in those legacy printers, and builds on this heritage to deliver best-in-class features for this new era of intelligence and forward adaptability.
DESIGNED FOR HEALTHCARE
Easy to Clean, Sanitize and Safely Power
Disinfectant-ready plastics, UV-resistant housing and a sealed- button interface make the ZD621 healthcare printers easy to clean and sanitize, helping prevent the spread of infections in hospitals and clinics. And, the power supply is IEC 60601-1 compliant for use in healthcare facilities.
EXPECT THE BEST
Premier Printing Performance
Rely on the ZD621 to help you power through-day after day. From industry-leading print speeds to portability for application flexibility to emerging technology to field-installable options, the ZD621 stands apart. Available in direct thermal and thermal transfer healthcare models, and a RFID model*, the ZD621 supports a wide variety of healthcare-specific use cases and requirements.
OPERATE WITH EASE
Simple to Deploy, Use, Manage and Secure
Backed by Zebra's innovative Print DNA software suite, the ZD621 is incredibly simple to operate.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Label/Receipt Print
- Print Color Capability
- Monochrome
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 4.09"
- Barcode Symbology Supported
- Code 11
- Code 39
- Code 93
- Code 128
- ISBT-128
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Codabar
- Planet Code
- Codablock
- PDF417
- Code 49
- Data Matrix
- Maxi Code
- QR Code
- Micro PDF
- Aztec Code
- UPC/EAN
- Real Time Clock
- Yes
- Application/Usage
- Desktop
- Features
- Status Indicator
- Dual Wall Frame
- LCD Display
- Secure Media Locking Mechanism
- UV Resistant Housing
- Mobile Device Printing
- Yes
- Optional Connectivity
- Wireless LAN
- Bluetooth
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 256 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Bluetooth
- Yes
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 4.3"
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Label
- Receipt
- Roll Fed
- Fanfold
- Die-cut Label
- Black Mark
- Tag Stock
- Continuous Receipt
- Wristband
- Tag
- Media Sensor
- Full Width Sensor
- Moveable Reflective/Black Mark Sensor
- Multi-position Transmissive/Gap Sensor
- Media Thickness
- 7.48 mil
- Maximum Roll Diameter
- 5"
- Maximum Label Width
- 4.25"
- Maximum Label Length
- 39.02"
- Fonts & Emulation
- Language Emulation
- EZPL
- ZPL
- EPL
- ZPL II
- EPL2
- XML
- ZBI
- Power Description
- Power Source
- AC Supply
- Input Voltage
- 120 V AC
- 230 V AC
- Environmental Conditions
- Operating Temperature
- 40°F (4.4°C) - 105°F (40.6°C)
- Operating Relative Humidity
- 10% - 90%
- Storage Temperature
- -40°F (-40°C) - 140°F (60°C)
- Storage Relative Humidity
- 5% - 95%
- Physical Characteristics
- Height
- 5.9"
- Width
- 7"
- Depth
- 8.7"
- Weight (Approximate)
- 3.60 lb
- Miscellaneous
- Power Cable Localization
- US
- Package Contents
- ZD621-HC Direct Thermal Printer
- AC Power Supply
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
- Cables Included
- USB
- AC
- Platform Supported
- iOS
- PC
- Android
- Certifications & Standards
- cTUVus
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
