- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1 Pack
- Product Type
- Device Server
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Wired
- Data Link Protocols
- TCP/IP
- UDP
- HTTP
- ARP
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Standard
- 10/100Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Total Number of Network Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of Serial Ports
- 2
- Environmental Conditions
- Minimum Operating Temperature
- 14°F (-10°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Power Description
- Input Voltage
- 10 V DC
- 30 V DC
- Input Voltage Range
- 10 V DC - 30 V DC
- Power Consumption
- 2.50 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Acrylonitrile Butadiene Styrene (ABS)
- Polycarbonate
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Stackable
- Height
- 5.1"
- Width
- 2.8"
- Depth
- 1.2"
- Weight (Approximate)
- 5.64 oz
- Miscellaneous
- Package Contents

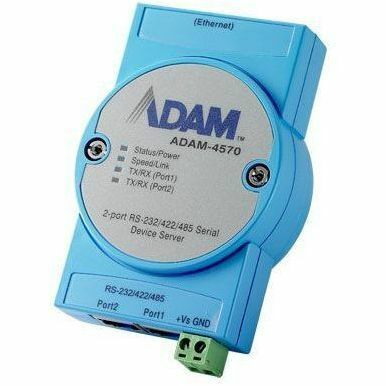

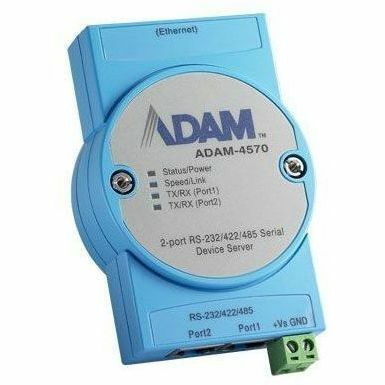

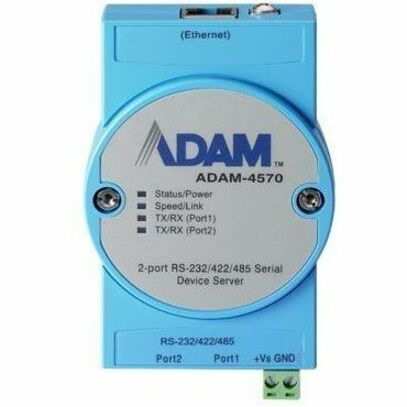

- 2-port RS-232/422/485 Serial Device Server
- 2 x 1 m RJ48 to DB9 Male Cables
- Certifications & Standards
- FCC Part 15 Subpart B (Class A)
- CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
