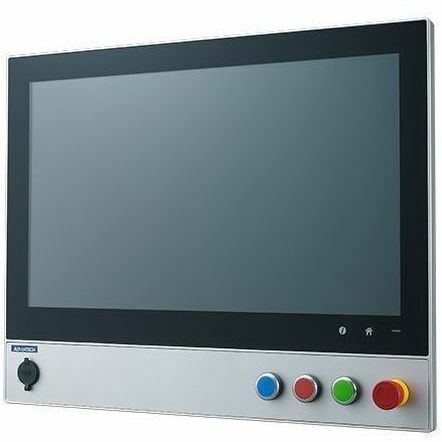

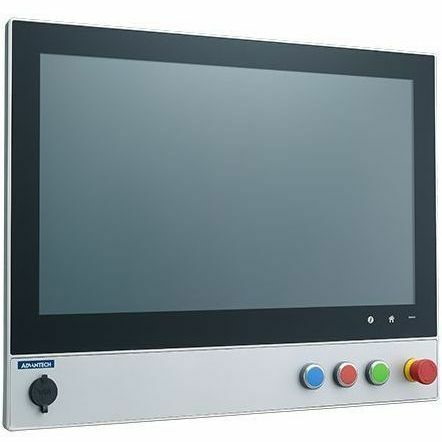

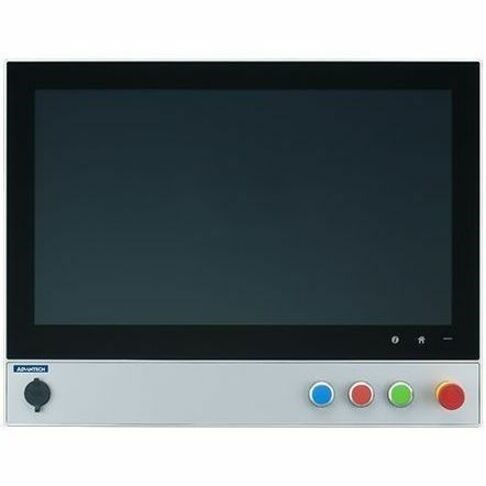

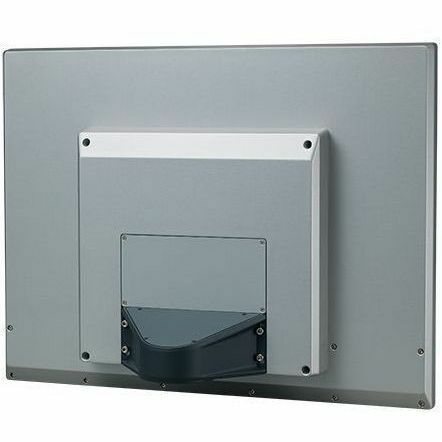

SPC-815 (M) and SPC-821 (M) are standalone multi-touch industrial monitors that can be pole mounted and integrated with an extension unit that supports RAFI FS22+ Series pushbuttons. Designed to be compatible with diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 B.Flex (Bernstein), SPC-815 (M) and SPC-821 (M) provide versatile monitors that can be installed in a variety of intelligent factories. The monitors are also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the inclusion of an I/O cover, all cables can be hidden for a tidy appearance and simplified wiring installation.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 22"
- Viewable Screen Size
- 21.5"
- Screen Mode
- Full HD
- Panel Technology
- Thin Film Transistor (TFT)
- Aspect Ratio
- 16:9
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Mount Type
- Pole Mount
- Backlight Technology
- LED
- Features
- LED Indicator
- Scratch Resistant
- Glass Hardness
- 7H
- Ingress Protection (IP) Rating
- IP65
- Video
- Maximum Resolution
- 1920 x 1080
- Color Supported
- 16.7 Million Colors
- Brightness
- 250 Nit
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- DisplayPort
- Yes
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 131°F (55°C)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 16.5"
- Width
- 21.5"
- Depth
- 6.3"
- Weight (Approximate)
- 17.64 lb
- Miscellaneous
- Package Contents
- SPC-821-MLA Touchscreen LED Monitor
- 4 x HDD Screw M3x4L S/S D=5 H=1.2 (2+) ST Ni NK
- 1 x Plug-In Block 1x3P/5.08mm/PA66/F/VA/Sn/GR/H15
- 1 x Cardboard-Warranty REV. A2
- 1 x A Cable G-TEM 4.3 100CM C=GR/Y
- 1 x BKT Cover IO 432C for SPC-821
- 1 x Flange Accessory Kit for SPC-800 (M) PIPE Mounting
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
