- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-9512
- Product Type
- Ethernet Switch

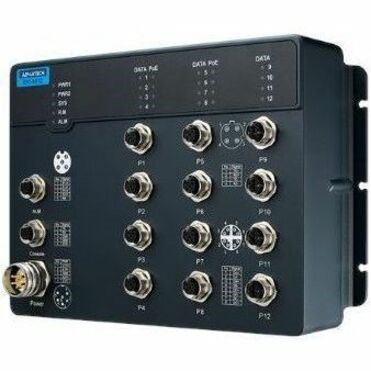

The EKI-9512 series Ethernet switch is designed for railway applications with rugged housing and high EMC performance. The EKI-9512 series is a suitable networking solution for rolling stock and wayside applications. It provides M12 connectors for Ethernet/ console/ relay/ power-input(M23) connections to ensure tight and robust connectivity, guarantees reliable operation against environmental disturbances, and complies with IEC61373 vibration and shock for rolling stock applications. The portfolio of EKI-9512 series provides 8 different options, catering to various user requirements. It provides 12-ports on different port configuration (please refer to the ordering information). With IEEE802.3af/at PoE functionality (PoE model only), it provides up to a 150 watt power budget (depends on different input voltage, please refer to PoE Total Power Budget) for P.D. devices (such as camera, IP-phone and wireless access point). The EKI-9512 series features IP67 housing and ample pitch connectors that can easily connect/ disconnect cables without interference; reducing human errors within harsh and narrow industrial environments.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- IP67
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
- DHCP Snooping
- Access Control List
- Remote Monitoring (RMON)
- Interfaces/Ports
- Total Number of Network Ports
- 12
- Port/Expansion Slot Details
- 8 x M12 4Pin D-Coded 10/100BASE-T Ethernet PoE Port
- 4 x M12 8Pin X-Coded 10/100/1000BASE-T Gigabit Ethernet Port
- Number of M12 Connectors
- 12
- Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- IEEE 802.1ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1p
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 150 W
- Input Voltage
- 24 V DC
- 28 V DC
- 36 V DC
- 48 V DC
- 72 V DC
- 110 V DC
- 16.8 V DC
- 96 V DC
- Power Source
- DC
- Power Consumption
- 17 W
- Physical Characteristics
- Product Material
- Metal
- Die-cast Aluminum
- Form Factor
- Enclosure
- Wall Mountable
- Height
- 6.9"
- Width
- 10"
- Depth
- 2.5"
- Weight (Approximate)
- 8.16 lb
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Camera
- IP Phone
- Wireless Access Point
- Security
