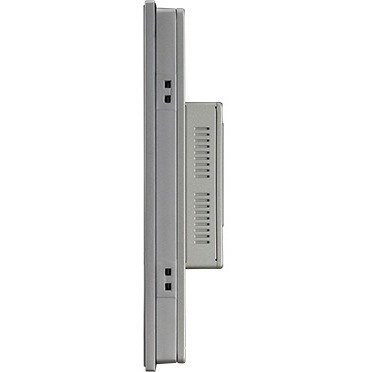

The TPC-1551WP thin-client terminal is equipped with a 15.6" SXGA TFT LCD, low-power Intel® Atom™ E3827 1.75 GHz dual-core processor, and 4 GB DDR3L SDRAM to deliver sufficient computing performance in a compact, fanless system. For enhanced durability, TPC-1551WP features a true-flat touchscreen with IP66-rated front panel, die cast aluminum alloy front bezel, and projected capacitive touch control. Because of the system's compact but robust design, it can be easily deployed into existing infrastructure. Moreover, Advantech's iDoor technology can be integrated via the mini PCIe slot in order to provide additional I/O connectors, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM to support diverse industrial automation applications.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Thin Client
- Processor
- Processor Type
- Atom
- Processor Model
- E3827
- Processor Speed
- 1.75 GHz
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DDR3L SDRAM
- Display & Graphics
- Screen Size
- 15.6"
- Display Screen Type
- Active Matrix TFT LCD
- Touchscreen
- Yes
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 1
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- All-in-One
- Height
- 10.6"
- Width
- 16.5"
- Depth
- 2.4"
- Weight (Approximate)
- 11.02 lb
- Miscellaneous
- Country of Origin
- Taiwan
