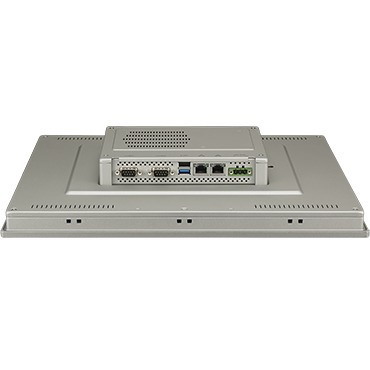

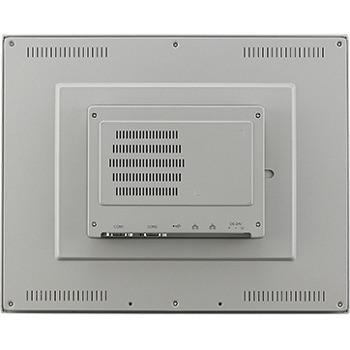

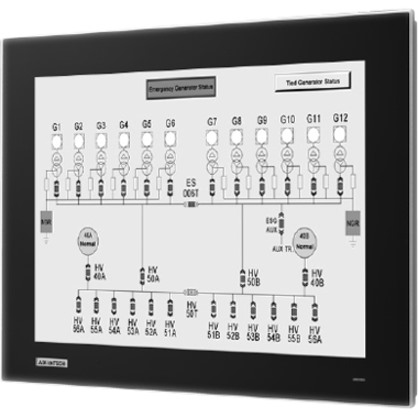

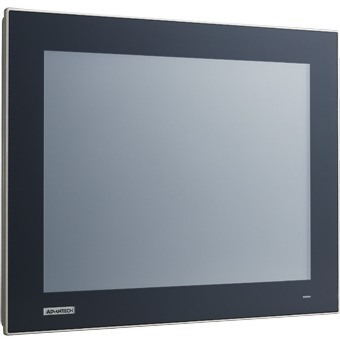

The TPC-1551T thin client terminal with a 15" XGA LCD, low power embedded Intel® Atom™ E3827 1.75 GHz Dual-core Processor and 4GB DDR3L SDRAM provides computing performance in a compact fanless system. To enhance its durability, the TPC-1551T is true-flat touchscreen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C and includes full size mini-PCIe slot to extend the functionality and meet a variety of automation applications needs. Through the Mini-PCIe slot, Advantech iDoor technology (optional) can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Product Type
- Thin Client
- Processor
- Processor Type
- Atom
- Processor Model
- E3827
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.75 GHz
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DDR3L SDRAM
- Display & Graphics
- Screen Size
- 15"
- Display Screen Type
- Active Matrix TFT LCD
- Touchscreen
- Yes
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 1
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- All-in-One
- Height
- 12.1"
- Width
- 15.1"
- Depth
- 2.4"
- Weight (Approximate)
- 8.60 lb
