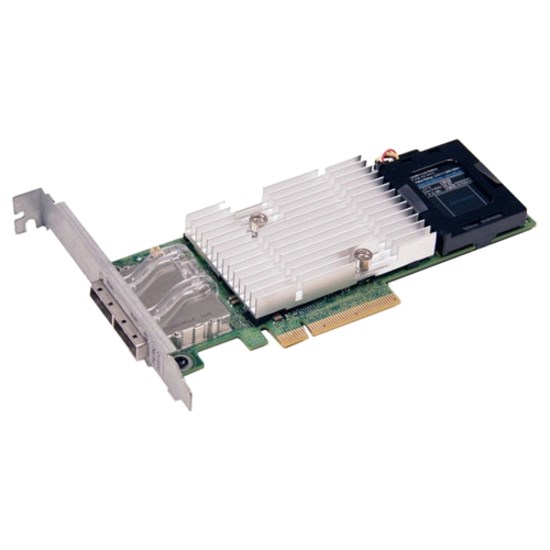

The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60.
The PERC H810 is available in either Low profile or Full Height Adapter form. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.delltechnologies.com
- Brand Name
- Dell
- Product Series
- PERC
- Product Type
- SAS Controller
- Technical Information
- Host Interface
- PCI Express 2.0 x8
- Controller Type
- 6Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 6
- 10
- 50
- 60
- Memory
- Cache Memory
- 1 GB
- Interfaces/Ports
- Total Number of SAS Ports
- 8
- Number of SAS Ports (External)
- 8
- SAS Connector Details
- 2 x SFF-8088
- Physical Characteristics
- Height
- 2.5"
- Depth
- 6.6"
- Form Factor
- Plug-in Card
- Miscellaneous
- Platform Supported
- Linux
- PC
