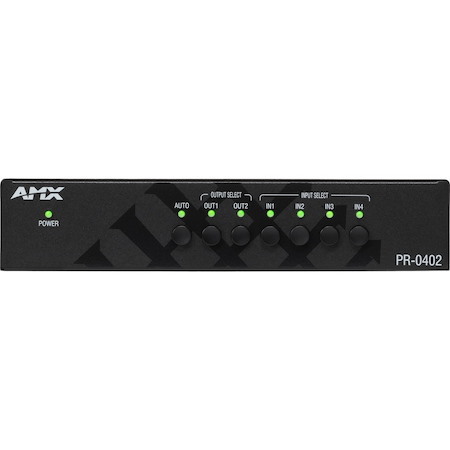

AMX 4x2 4K60 HDMI Switcher

  • Part: 1567154
$596.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Harman International Industries, Inc
    • Manufacturer Website Address
    • http://www.harman.com
    • Brand Name
    • AMX
    • Product Type
    • Audio/Video Switchbox

The AMX Precis 4x2 4K60 HDMI Switcher is an extremely affordable yet fully featured HDMI video routing solution for small to medium installations. Featuring 4 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, automatic or manual switching modes, and extreme control flexibility with an open control API and a simple-tomanage web interface.

The PR-0402 supports high quality HDMI 2.0, HDCP 2.2, High Dynamic Range (HDR), and 36-bit per pixel Deep Color. Automatic and manual switching modes plus onboard dynamic audio de-embedding offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0402 can be trusted to deliver an exceptional switching solution.

Common Applications

The Precis PR-0402 4K60 HDMI Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in meeting spaces, classrooms, lecture halls, houses of worship and more.

Features

Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays

HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces

High Dynamic Range (HDR) and Deep Color Support - Support HDR10, HDR10+, Dolby Vision and 36-bit per pixel deep color.

Automatic and Manual Switching Modes - Automatic switching can be leveraged to create a touch-free experience

EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format

Audio De-Embedding - Includes the convenience of analog audio de-embedding from each HDMI output separately

Multiple Audio Format Support - PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, DTS HD MA

H-Control Upgradable - Ready to support H-control in the future by firmware re-writing via USB.

Multiple Control Options - Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons

  • Technical Information
    • Connectivity Technology
    • Cable
    • Number of Input Devices Supported
    • 4
    • Device Supported
    • Display
    • Number of Displays Supported
    • 2
  • Video
    • Graphics Modes
    • 4K
    • Maximum Video Resolution
    • 4096 x 2160
  • Interfaces/Ports
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Connectivity (RJ-45)
    • Yes
    • Number of Connectivity (RJ-45) Ports
    • 1
    • Number of USB Ports
    • 1
    • Number of HDMI Inputs
    • 4
    • Number of HDMI Outputs
    • 2
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 1.7"
    • Width
    • 8.4"
    • Depth
    • 8.1"
    • Weight (Approximate)
    • 2.87 lb
  • Miscellaneous
    • Package Contents
      • 6x2 4K60 HDMI Switcher
      • 1 x US Pins
      • 1 x 12V/3A DC Power Adapter
      • 3 x 3-Pin Terminal Blocks
      • 4 x Shockproof Feet
