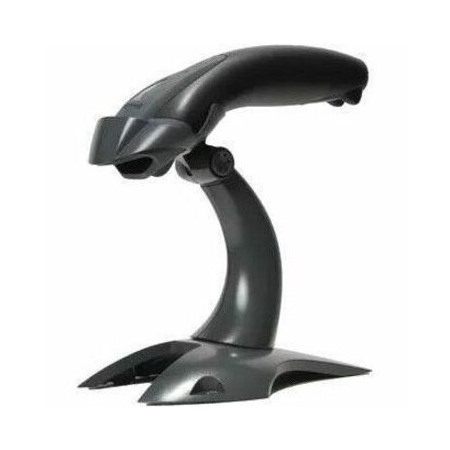

Honeywell Voyager 1400g Area-Imaging Scanner

  • Part: 1346372
$347.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Honeywell International, Inc
    • Manufacturer Website Address
    • http://www.honeywell.com
    • Brand Name
    • Honeywell
    • Product Line
    • Voyager
    • Product Type
    • Barcode Scanner Kit

2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.

Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.

Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.

With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.

The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.

  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • Connectivity Technology
    • Cable
    • Scanning Capability
    • 1D
    • Barcode Symbology Supported
      • 1400g1D: all standard 1D symbologies
    • Light Source
    • LED
    • Image Sensor Type
    • Imager
    • Scan Pattern
    • Linear
    • Area
    • Omni-directional
    • Scanning Distance
    • 13.70"
    • Cable Type Included
    • USB
    • Field of View (Horizontal)
    • 42°
    • Field of View (Vertical)
    • 31°
    • Reading Angle (Skew)
    • 70°
    • Reading Angle (Pitch)
    • 60°
    • Motion Tolerance
    • 4 in/s
    • Maximum Ambient Light
    • 100000 lux
    • Drop Specification
      • Designed to withstand 30 1.5 m (5ยด) drops to concrete
    • Minimum Print Contrast
    • 35%
    • Minimum Element Resolution (Code 39)
    • 5 mil
    • Maximum Element Resolution (Code 39)
    • 20 mil
    • Minimum Element Resolution (DataMatrix)
    • 10 mil
    • Minimum Element Resolution (PDF417)
    • 6.7 mil
    • Image Sensor Resolution
    • 640 x 480
  • Interfaces/Ports
    • Host Interface
    • USB
    • Keyboard Wedge
    • Serial
    • IBM 46XX
  • Power Description
    • Maximum Operating Power Consumption
    • 2 W
    • Standby Current
    • 90 mA
  • Environmental Conditions
    • Operating Temperature
    • 32°F (0°C) to 104°F (40°C)
    • Storage Temperature
    • -40°F (-40°C) to 140°F (60°C)
    • Humidity (Non-condensing)
    • 0% to 95%
  • Physical Characteristics
    • Form Factor
    • Handheld
    • Color Family
    • Black
    • Product Color
    • Black
    • Height
    • 2.6"
    • Width
    • 7.1"
    • Length
    • 1.7"
    • Weight (Approximate)
    • 4.20 oz
  • Miscellaneous
    • Package Contents
      • 1 x Voyager 1400g Area-Imaging Scanner
      • 1 x USB Type A 1.5m straight cable (CBL-500-150-S00)
    • Ingress Protection (IP) Rating
    • IP42
    • Application/Usage
    • Industrial
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
