- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- DuraSled
- Packaged Quantity
- 1
- Product Type
- Barcode Scanner

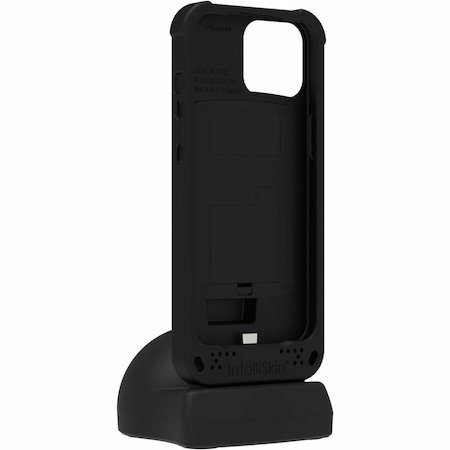

The DuraSled DS800 is a 1D barcode scanning sled with Bluetooth wireless technology for Apple iPhones and iPods. The sled protects devices from tumbles, is easy-to-use and ideal for delivery services, stock counting, ticketing and other application-driven mobile solutions. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
The DuraSled's core elements remain constant, enabling seamless transitions to the ever-changing iPhone models, using the same application and same DuraSled charging infrastructure. DuraSled supports the iPod, iPhone 6, 7, 8, SE 2020, iPhone X series and the entire iPhone 11 series. Users can maintain their mobile deployment investments for a relevant number of years.
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- Barcode Symbology Supported
1D:
- Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Discrete 2 Of 5, EAN-8, EAN 13, GS1-128, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, Interleaved 2 Of 5, Inverse 1D, ISBT 128, Matrix 2 Of 5, MSI, UPC-A, UPC-E/E1
- Image Sensor Type
- Imager
- Scan Pattern
- Linear
- Scanning Distance
- 24"
- Features
- Notification LED
- Scan Button
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- Multiple 3.3 ft. drops to vinyl covered concrete
- Minimum Print Contrast
- 20%
- Minimum Element Resolution (Code 39)
- 5 mil
- Network & Communication
- Bluetooth
- Yes
- Battery Information
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Capacity
- 700 mAh
- Battery Weight
- 0.44 oz
- Maximum Battery Run Time
- 21 Hour
- Maximum Battery Recharge Time
- 8 Hour
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) to 122°F (50°C)
- Storage Temperature
- -22°F (-30°C) to 158°F (70°C)
- Humidity (Non-condensing)
- 95%
- Miscellaneous
- Ingress Protection (IP) Rating
- IP40
- Application/Usage
- Retail
- Healthcare
- Logistics
- Hospitality
- Delivery
- Ticketing
- Platform Supported
- iOS
