Experience performance, security, and manageability tailored for the modern workplace with the compact HP EliteDesk 800 Desktop Mini. It's built to suit your business and budget.
- Windows 10 Pro or other operating systems available
Meet the mighty Mini
Tackle demanding challenges with a 9th generation Intel® processor and high-capacity storage.
Build a universe around your Mini
Expand your experience with optional HP Mini accessories that simplify mounting and securing your device. Save space by attaching your Mini behind an HP EliteDisplay. Streamline cabling with USB-C™ and optional HP Power Supply Holder.
Enhanced data and device security
Get a highly secure PC reinforced by the full HP security suite. Store and lock your Mini and power cord in the optional HP Lock Box.
- Windows 10 Pro or other operating systems available
- General Information
- Manufacturer
- HP Inc.
- Manufacturer Website Address
- http://www.hp.com
- Brand Name
- HP
- Product Line
- EliteDesk
- Product Series
- 800 G5
- Product Type
- Desktop Computer
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Processor Manufacturer
- Intel
- Processor Type
- Core i5
- Processor Generation
- 9th Gen
- Processor Model
- i5-9500T
- Processor Core
- Hexa-core (6 Core)
- Processor Speed
- 2.20 GHz
- Maximum Turbo Speed
- 3.70 GHz
- L3 Cache
- 9 MB
- vPro Technology
- Yes
- Processor Threads
- 6
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q370
- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed
- 2666 MHz
- Memory Configuration
- 1 x 16GB
- Total Number of Memory Slots
- 2
- Number of Occupied Memory Slots
- 1
- Intel Optane Memory Ready
- Yes
- Storage
- Drive Type
- SSD
- Total Solid State Drive Capacity
- 512 GB
- Solid State Drive Interface
- PCI Express NVMe
- SSD Form Factor
- M.2
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics 630
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- LAN Manufacturer
- Intel
- LAN Model
- I219-LM
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes

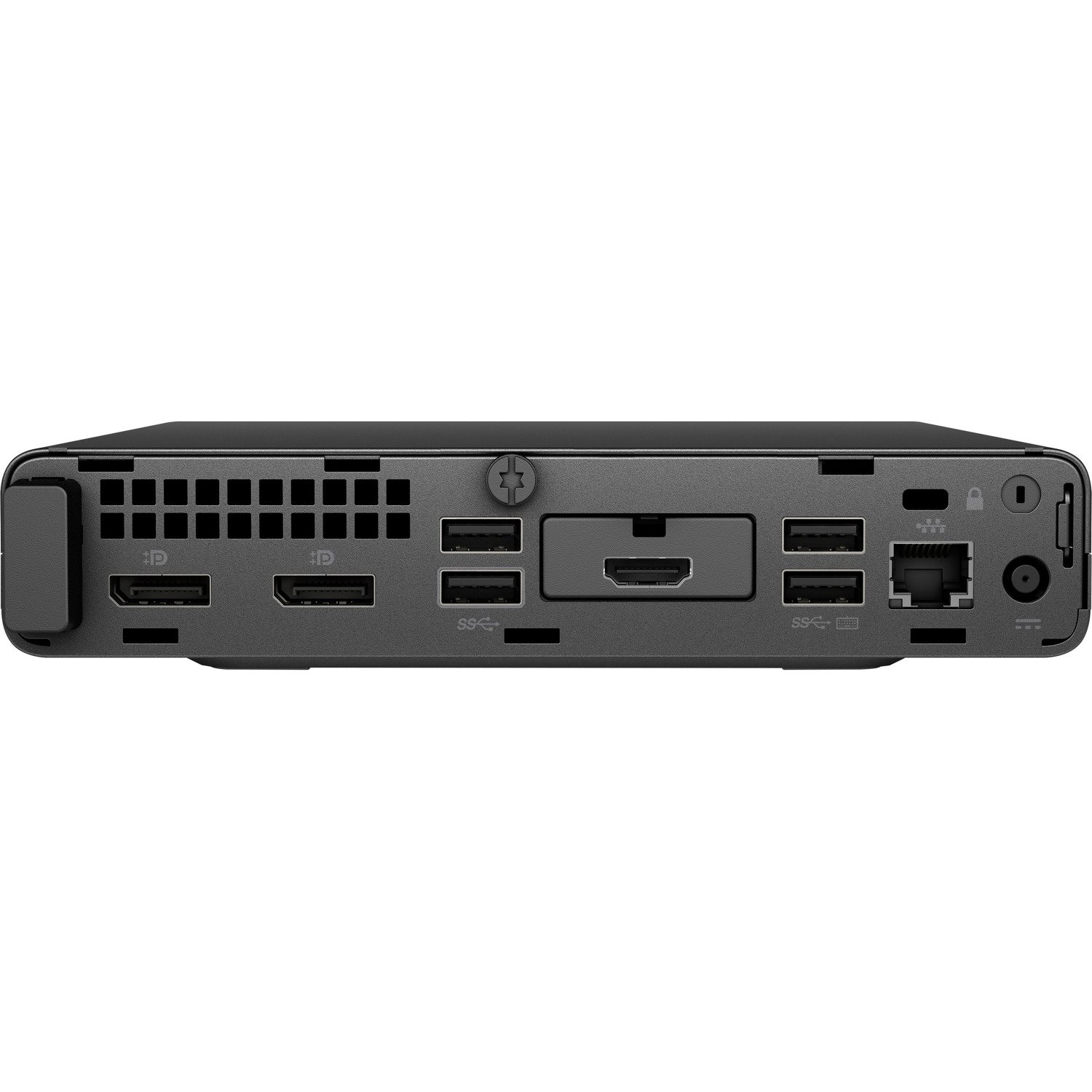

- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 7
- Number of USB 3.1 Gen 1 Ports (Front)
- 1
- Number of USB 3.1 Gen 1 Ports (Rear)
- 2
- Number of USB 3.1 Gen 2 Ports (Front)
- 1
- Number of USB 3.1 Gen 2 Ports (Rear)
- 2
- USB Type-C (Front)
- Yes
- USB Type-C Detail
- 1 x USB Type-C™ 3.1 Gen 2
- Number Of Ethernet Ports
- 1
- Number of DisplayPort Outputs (Rear)
- 3
- DisplayPort (Rear)
- Yes
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 x USB Type-C™ 3.1 Gen 2
- 1 x Serial (RS-232)
- Operating System
- Operating System Platform
- Windows
- Operating System
- Windows 10 Pro
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 65 W
- Frequency
- 47 Hz
- 63 Hz
- Physical Characteristics
- Form Factor
- Mini PC
- Height
- 1.3"
- Width
- 7"
- Depth
- 6.9"
- Weight (Approximate)
- 2.12 lb
- Miscellaneous
- Package Contents
- EliteDesk 800 G5 Desktop Mini PC
- Power Adapter
- Features
- Tool-less Access
- Security Slot
- Low Halogen
- Energy Star
- Yes
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
